PANEL XP 23.5 dBi antenna 5 GHz MIMO

Untitled Document

   The panel antenna recommended to use with MIMO and NSTREME DUAL. Antenna is designed for working with any other linear vertical polarization or linear horizontal polarization antenna or diagonal polarization. The antenna is made from the very best materials, weather-proof, rain-tight. Perfect as a wireless bridge antenna and as a client antenna in places where important signal gain is needed, it offeres steady and stable signal on large distances. Mountig directly to mast, allows azimuth corrections. The PANEL XP GHz antenna can be used as a substitute for PARABOLA antennas.


 Installation manual



Product details:

Model BP-50PL-23-MIMO
Gain 23.5 dBi
Operating frequency 5.1 - 6.0 GHz
Vertical beam width 7 degrees
Horizontal beam width 7 degrees
Impedance 50 Ohm
Connector 2 x N (f) socket
VSWR 1.4
Dimensions 510 / 510 / 38,1 mm
Weight 3.57 kg
Polarization vertical/horizontal (both), diagonal -45/+45 degrees (both)
Mounting Mast handle, diameter from 1/2 to 7/4 inch (allows full rotation and azimuth correction).
Wind load frontal: 455 N (at 125 mph)
rearside: 416 N (at 125 mph)
lateral: 21 N (at 125 mph)

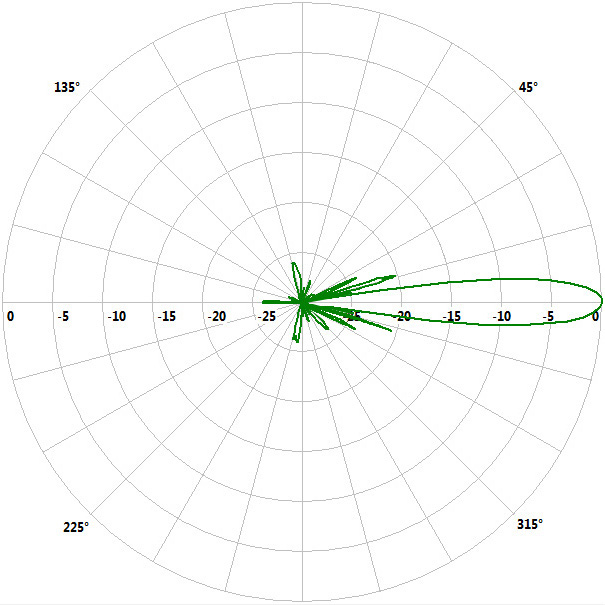

Radiation patterns:
Azimuth H Elevation H
Azimuth V Elevation V



Horizontal polarization
Diagonal polarization
Side view
Front view

Content on this page requires a newer version of Adobe Flash Player.

Get Adobe Flash player


Price: 377.00 PLN / pcs  Price: 93.50 € / pcs    Add to the basket.
