RADIUS XP directional 2.4 GHz MIMO antenna 17 dBi

Untitled Document

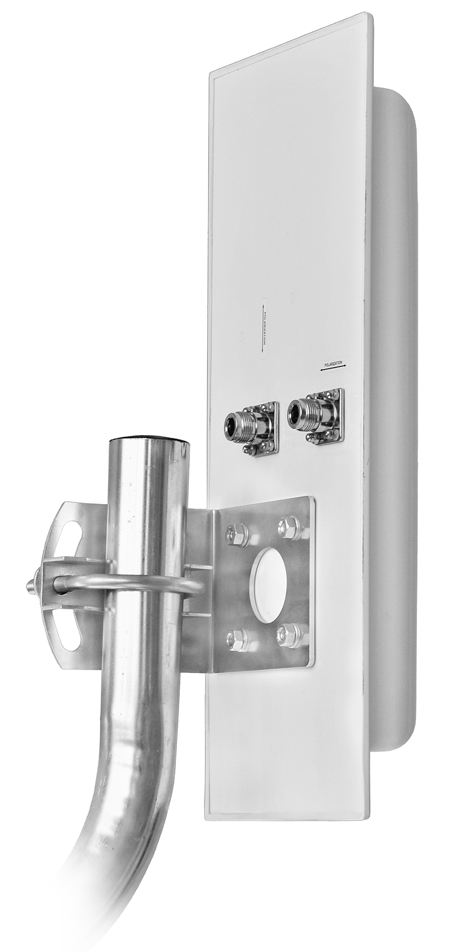

          Sector antenna RADIUS MIMO is characterized by small dimensions and high gain. The panel antenna recommended to use with MIMO and NSTREME DUAL. It is recommended as a substitute for the RADIUS MIMO antenna, when use of bigger aerial is impossible. The bottom of the antenna is made of powder painted aluminium, and the casing is made from UV-proof PVC material. Mounting allows azimuth correction and full rotation for easy antenna setup.




Product details:

Model BP-24RS-17-MIMO
Gain 17 dBi
Operating frequency 2.4 - 2.5 GHz
Vertical beam width 6 degrees
Horizontal beam width 90 degrees
Impedance 50 Ohm
Connector N (f) socket
VSWR 1.2
Dimensions 310 / 100 / 25 mm
Weight 0.6 kg
Polarization horizontal
Standard Full compatibility with IEEE 802.11x
Mounting Mast handle, diameter from 1/2 to 7/4 inch (allows full rotation).
Radiation patterns:
Azimuth H Elevation H
Azimuth V Elevation V

Price: 286.00 PLN / pcs  Price: 71.15 € / pcs    Add to the basket.


#21199   RADIUS XP directional 2.4 GHz MIMO antenna 17 dBi71.15 EUR
#21196   VECTOR 17 dBi 2.4 GHz MIMO - 120 antenna78.61 EUR
#21197   VECTOR 18 dBi 2.4 GHz MIMO - 90 antenna81.35 EUR
#21198   VECTOR 19 dBi 2.4 GHz MIMO - 60 antenna86.32 EUR
