PARABOLA 10 GHz MIMO antenna 36 dBi

Untitled Document

   Parabola XP parabolic antenna is an antenna with very high gain power, designed to build radio bridges over long distances. Specially selected materials and specialized tests guarantee a stable and trouble-free cooperation with the high data rate wireless devices. The antennas have a very well resolved attachment system which allows for precise adjustment both vertically and horizontally.






Technical specification:

Model BP-100PA-36-MIMO
Gain 36 dBi
Operating frequency 10.15 - 10.875 GHz
Vertical beam width 3 degrees
Horizontal beam width 2.5 degrees
Impedance 50 Ohm
VSWR 1.5
Connector 2xRP-SMA(F) socket
Radiating element DC open-circuit
Dimensions canopy diameter: 900 mm
Weight 7.5 kg
Polarization vertical + horizontal
Standards Fully compatibile with IEEE 802.11x
Mounting Mast handle, diameter from 1/2 to 7/4 inch (allows full rotation and azimuth correction).

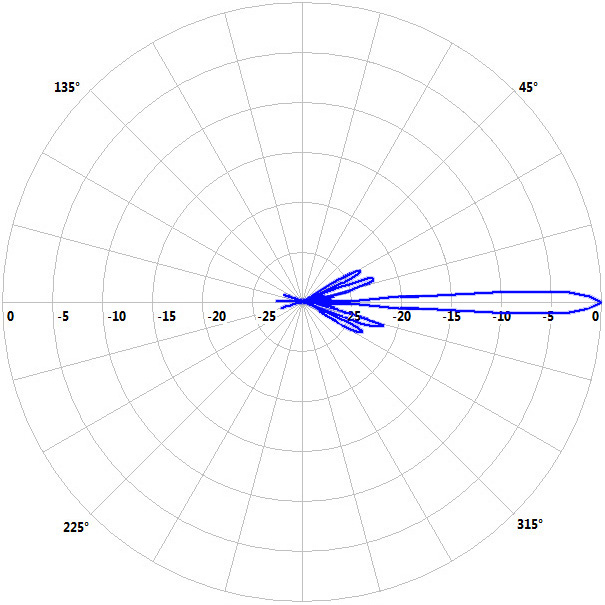

Radiation patterns:
Azimuth H Elevation H
Azimuth V Elevation V


Price: 941.00 PLN / pcs  Price: 233.72 € / pcs    Add to the basket.


#21475   PARABOLA 10 GHz MIMO antenna 36 dBi233.72 EUR
#21476   PARABOLA 10 GHz MIMO antenna 39 dBi288.11 EUR
#21477   PARABOLA 10 GHz MIMO antenna 42 dBi650.24 EUR
