PANEL XP 20 dBi 1900-2160 MHz UMTS

Untitled Document

             This antenna is designed to be used in places where UMTS signal level is to low and doesn't allow correct voice and data transmission through the modem. UMTS PANEL XP antenna allows to get better radio signal used in UMTS(G3) transmission 1900-2100 MHz. Using the antenna connected to the modem allows higher tramission speed due to better signal level and modulation. The antenna was made from the very best materials and is fully weatherproof (humidity, wind, UV). The PANEL XP antenna has an advanced mounting system, which allows easy azimuth and horizont correction.

Notice! To cooperate with GSM networks, the antenna should be set in vertical polarization!

Check also : UMTS pigtails antenna - modem




Technical specification:

Model BP-UMTSPL-20
Gain 20 dBi
Frequency 1900 - 2160 MHz
Vertical beam width 13 degrees
Horizontal beam width 13 degrees
Impedance 50 Ohm
Connector N(f)

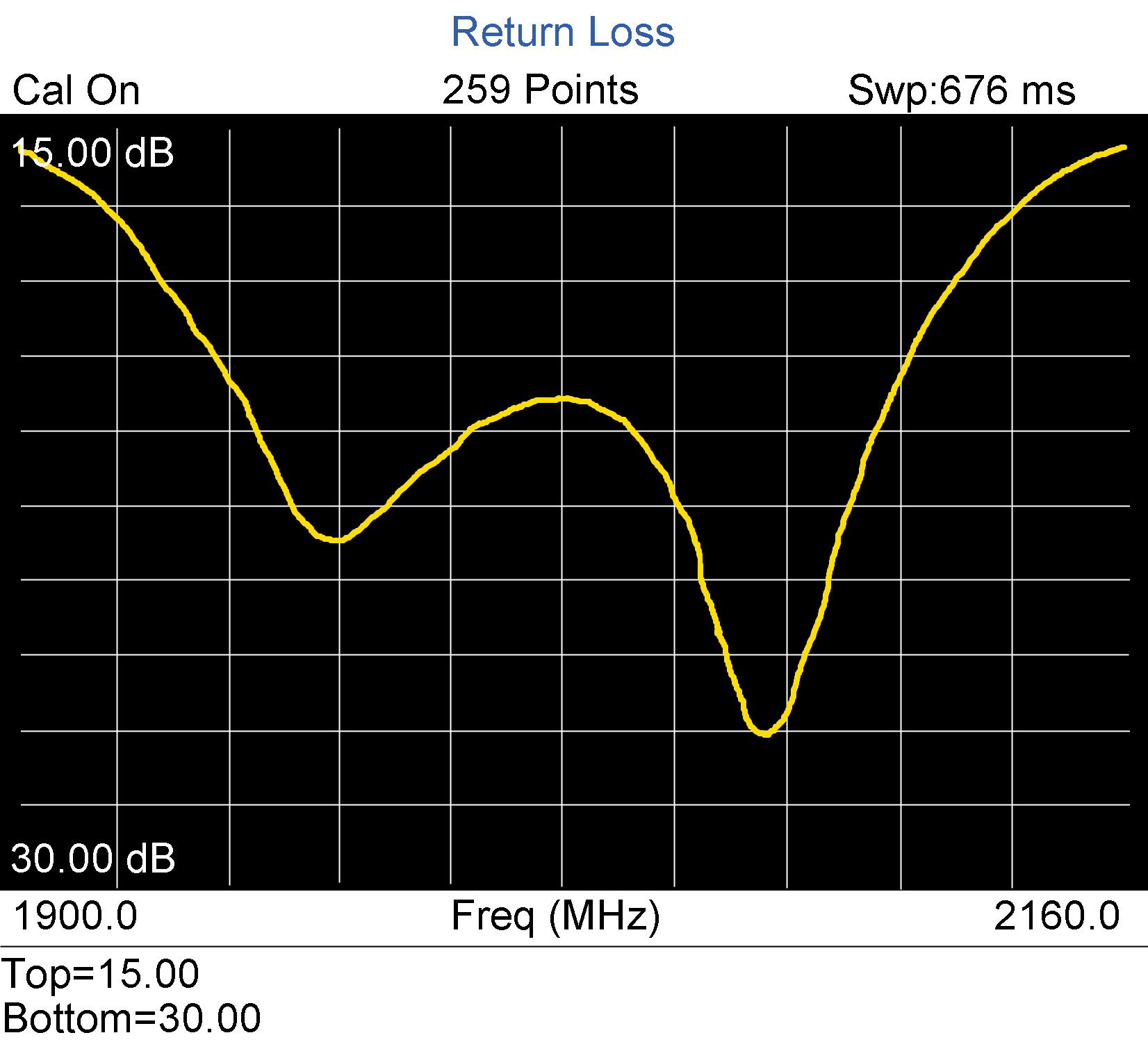

VSWR 1.5
Dimensions 510 / 510 / 38,1 mm
Weight 3.27 kg
Polarization vertical, horizontal, diagonal (45 degrees)
Standards Full compatibility with UMTS
Mounting Mast handle, diameter from 1/2 to 7/4 inch (allows full rotation and azimuth correction).
Wind load frontal: 455 N (at 125 mph)
rearside: 416 N (at 125 mph)
lateral: 21 N (at 125 mph)
Radiation patterns:
Azimuth Elevation




Price: 534.00 PLN / pcs  Price: 132.41 € / pcs    Add to the basket.
