 Bestpartner » Catalog » VECTOR H-PRO 18 dBi UMTS antenna PreviousNext

VECTOR H-PRO 18 dBi UMTS antenna

Untitled Document

  The sector antenna VECTOR V-PRO UMTS is characterized by high energetical gain of 17 dBi. The antenna operates in vertical polarization. It is designed as a base station antenna. These antennas are made from the very best materials, both weather-proof and UV-proof. The antennas area sealed up with special plastics which provides perfect radio signal for years without conservation. The VECTOR UMTS antenna is destined to work in licensed radio bands and allows building wide-range, high data flow UTMS cells. Mounting allows precise antenna adjustment. Using Vector H-PRO and Vector V-PRO antenna sets renders significant noise reduction in single radio cell.

 Installation manual

Technical specification:

Gain 18 dBi
Frequency 1900 - 2160 MHz
Vertical beam width 6 degrees
Horizontal beam width 60 degrees
Impedance 50 Ohm
Connector N type socket (female)
VSWR 1.4
Radiating unit shortcut
Dimensions 740 / 120 / 60 mm
Weightq 1.4 kg
Backward radiation -28 dBi
Polarization horizontal
Mounting Mast handle, diameter from 1/2 to 7/4 inch (allows full rotation and azimuth correction).

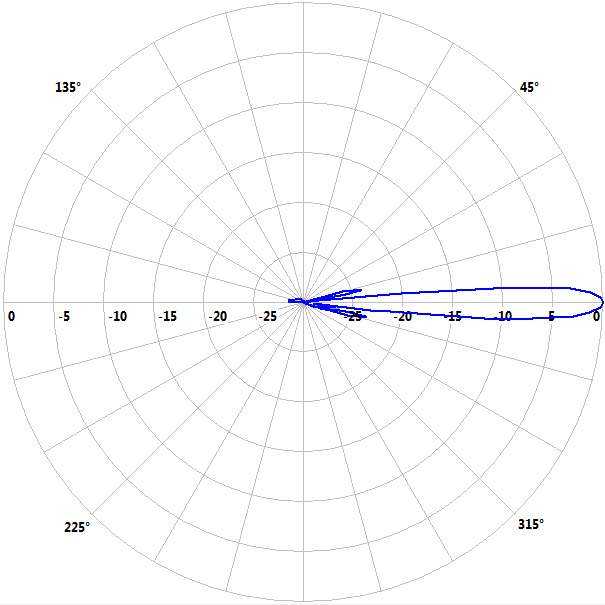

Radiation patterns:
Azimuth Elevation


Content on this page requires a newer version of Adobe Flash Player.

Get Adobe Flash player

Price: 975.00 PLN / pcs  Price: 242.53 € / pcs    Add to the basket.

#20580   PANEL MAX 15 dBi antenna 1900-2160 MHz UMTS38.06 EUR
#20581   PANEL MIDI 11 dBi antenna 1900-2160 MHz UMTS 26.12 EUR
#21028   PANEL ULTRA 25 dBi UMTS 1900-2160194.52 EUR
#20677   PANEL XP 20 dBi 1900-2160 MHz UMTS132.83 EUR
#20774   VECTOR H-PRO 17 dBi UMTS antenna207.96 EUR
#20775   VECTOR H-PRO 18 dBi UMTS antenna242.53 EUR
#20772   VECTOR V-PRO 17 dBi UMTS antenna211.19 EUR
#20773   VECTOR V-PRO 18 dBi UMTS antenna244.02 EUR
