 Bestpartner » Catalog » PARABOLA XP 29 dBi 6 GHz PreviousNext


PARABOLA XP 29 dBi 6 GHz

Untitled Document

   BP-60PAX-29 antenna is a very high efficient directional antenna designed to be used in far distance radio bridges. The antennas bowl is made from powder-painted aluminium, and zinced steel mast handle allows azimuth and rotation adjustment. Antenna radiator is made using microstrips technology.


 Installation manual




Product details:


Model BP-60PAX-29
Gain 29 dBi
Operating frequency 5.9-6.9GHz
Vertical beam width 4.5 degrees
Horizontal beam width 4.5 degrees
Impedance 50 Ohm
Connector RP-SMA
Ending MRC 240  1m cable
VSWR 1.4
Dimensions bowl diameter: 500 mm
Weight 1.4 kg
Polarization vertical or horizontal
Standard Fully compatibile with IEEE 802.11x
Mounting Mast handle, diameter from 1/2 to 7/4 inch (allows full rotation and azimuth correction).

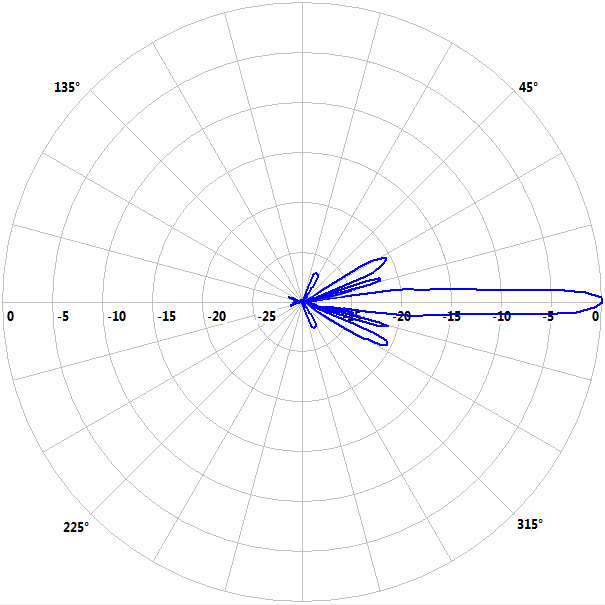

Radiation patterns:
Azimuth Elevation

Price: 209.00 PLN / pcs  Price: 47.83 € / pcs    Add to the basket.
